Seaton 42' Raised Pilothouse Trawler

$199,500. US

Year: 1983

File Number: PA5814

Listing Broker: Ernest Hamilton

Phone: 506-634-1672
888-560-6792

Location: Nova Scotia

LOA: 42'

Beam: 15'

Draft: 5'2"

Displacement: 65,000#

Vertical Clearance: 18'6"

BUILDER: North End Marine, Rockland, Me. DESIGNER: Stephen R. Seaton

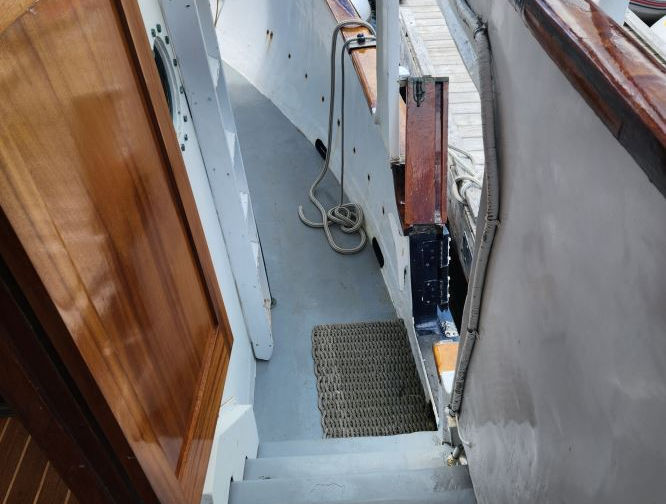

CONSTRUCTION: Flag blue Airex cored fiberglass hull, gray decks and white deck-houses; long skeg keel with fully supported rudder. She is a raised pilot-house design. The pilot-house has ‘Dutch’ access doors port and starboard; heavy rub-rails; asymmetric cabin arrangement with fore-and aft covered side deck on the port side. The deep cockpit is partially covered by the boat deck. Welded stainless steel rails forward of the pilot house. The fore deck has a substantial (carbon fiber sheathing over wood) mast with lifting boom and riding sail; Wesmar 10 HP, 24 volt, electric bow thruster (1999); Naiad active fin stabilizers (1996 w/ updates); hydraulic steering; emergency tiller; 10 bronze ports (2007).

ACCOMMODATIONS:

She has 6’6” headroom and 5 berths.

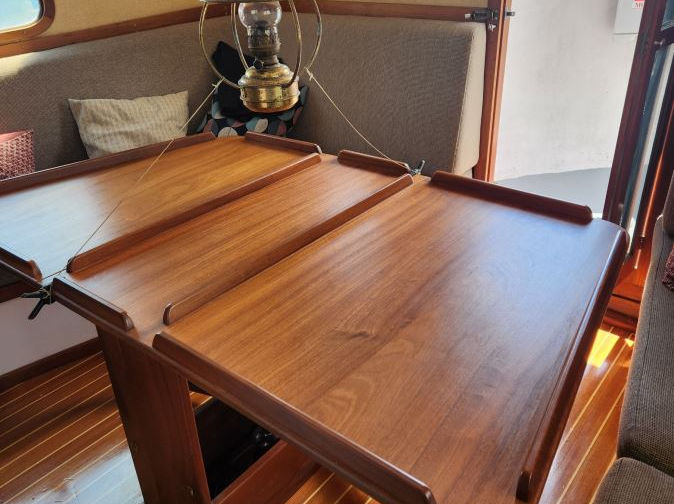

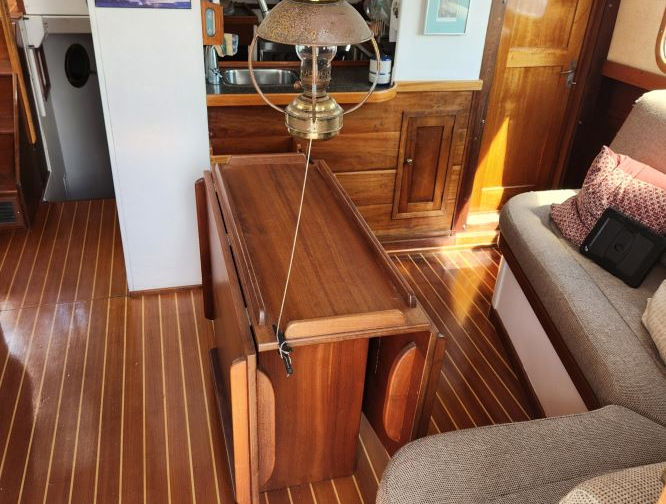

The pilothouse has an amidships helm, settee and anthwartships watch berth. Three steps down and aft is the main salon with a horseshoe seating arrangement and drop-leaf table. The galley is forward to starboard.  The master stateroom is amidships to port with a head opposite to starboard. A large open stateroom with bunks port and starboard is forward with another head in the forepeak. These berths can convert to settees for day use. There is a stand-up portion of the engine room with a work-bench; and there is a small deep cockpit aft of the salon.

The fully equipped galley has a Force 10 - 3 burner LPG stove with oven (2010); microwave oven; Isotherm 12/110 volt refrigerator and freezer. There is a separate Norcold freezer in the forward stateroom.

The yacht has hot and cold pressure water to the two heads and the galley. She has one electric and one manual marine toilet. Each head has a sink and vanity; one has a shower.

The yacht has a Herreshoff style interior with painted bulkheads teak and mahogany trim, teak and holly sole; vinyl headliner; beige fabric upholstery in the main salon. She has 3 Cruisaire air-conditioning units (16,000 BTW each) plus a bus-type heater which runs off of the engine.

TANKS: 2 black-Iron fuel tanks with a total capacity of 500 gallons. There are sighting glasses for each tank. There is a 200 gallon water capacity in fiberglass tanks; and 100 gallon holding tank capacity in a fiberglass tank. The water and holding tanks have a Groco tank monitoring system. The holding tank may be evacuated dock-side or over board. There are 2 – 10 lb. LPG tanks.

ENGINE: 1982 Ford ‘Iveco’ 167 HP, 8.1 ltr. naturally aspirated, 6 cylinder, diesel engine model: SDD-681M; Twin Disc transmission w/ 3:1 reduction gear; Walters keel-cooler with dry exhaust; cruising speed: 7.5 kts.@ 1800; 2 GPH @ 6.5 kts.; hour meter showing 5,900 to the time of listing; 2.5” propeller shaft; Drive-Saver; Spurs on the shaft; remote lubricating oil filtration on the main engine; fuel polishing system; fuel transfer pump; 2 Racor fuel filters with a vacuum gauge; engine room blower; sea-water intake filter; Halon fire suppression system in the engine room; engine instrumentation and start-stop in both the engine room and the pilot-house.

ELECTRICAL SYSTEMS: The yacht has 12 and 24 volt DC systems and 110 and 220 volt AC systems. The 220 volt system is supplied with by shore-power connection through an isolation transformer which acts as a galvanic isolator and converts the power to 110 volt, 100 amps. There is also an 8 KW Kilopak auxiliary generator (1999); no hour meter but light usage; all 110 volt wiring replaced in 1999. There are 7 AGM batteries: house system, main engine, generator and bow-thruster. Paneltronics circuit breaker panel;  900 watt solar panels; LED lights in all fixtures including navigation lights; deck light on foremast; 50 amp isolation transformer; 50 amp shore cord; separate charger for the bow thruster battery; Trace 1500 watt inverter; dual alternators on the main engine.

ELECTRONICS: Standard Horizon VHF w/ AIS; loud hailer with auto-fog horn;  Raymarine ‘R41 XX’ 48 mile Radar; Raymarine 12” GPS/plotter with Navionics charting; Raymarine ST6002 Autopilot; Wood Freeman main compass, AIS transmitter and receiver; stereo system; Furuno GPS; hand-held VHF; fume detector.

GENERAL: Rockna main anchor with 150’ of galvanized chain; Delta & CQR spare anchors and rodes; Ideal vertical electric anchor windless; Lighthouse Horizon horizontal anchor windless; dock-lines and fenders; search light; Edson manual bilge pump; 3 electric bilge pumps; wash-down pump;  inflatable dinghy w/ 5 HP Nissan 2 cycle outboard; Weems & Plath clock & barometer; parachute type sea-anchor; Man-overboard module; Lifesling; life jackets and immersion suits; 3 boat hooks; radar reflectors; at-anchor roll preventer; tools for stabilizer maintenance and stuffing box adjustment; msc. spare parts; boarding ladder; barbeque; fire extinguishers; fire blanket; emergency boarding ladder.

PARTICULARAS AS SUPPLIED BY THE OWNER ARE BELIEVED TO BE CORRECT BUT ARE NOT WARRANTED.

BROKER’S COMMENT: The Steve Seaton designed Seaton 42 is a true ocean passage maker. She has a 65,000# displacement and 17,000# of ballast. One of her cruises of note was to Bermuda. With her Naiad stabilizers, A/C and amidships berths, she remains comfortable under a range of sea conditions. She is a true small ship that has been well maintained by two very experienced yachtsmen.


Walk-around video:

https://www.youtube.com/watch?v=TvSVGAEToyo&t=2s
